GPM-1800C測試系統主要由分布光度計、恒溫光度探頭、色度探測器、光譜儀、光導軌、標準燈、角度控制儀器、電源及電量測量儀器等組成,合理選擇各類測量儀器將直接關系到測試系統的總體性能、精度、效率和成本。系統測量數據符合國際、國內標準要求,IESNA文件格式輸出,可由其它照明和燈具設計軟件直接調用,采用貴金屬光纖點刷技術的高級換向器,實現不間斷連續測量,不會繞線,智能啟動和停止,轉動平穩,低噪聲。
> 光度測量范圍:照度0.01lx - 99999lx
> 光度測量精度:1%(不包括標準光源本身不確定度)
> 光度線性:0.2%
> 恒溫光度探頭選用標準級,內部恒溫控制精度:±0.1°
> 雜散光:小于0.1%
> 角度精度:0.1度
> 傳動角度分辨率:A角為0.01° α角為0.01°
>被測對象(含燈具和夾具)的最大質量、尺寸
GPM-1800C :30kg 長:600mm(被測燈安裝基座尺寸) 高:390mm(被測燈安裝基座至光源中心尺寸)
> 測光距離: 最大30m

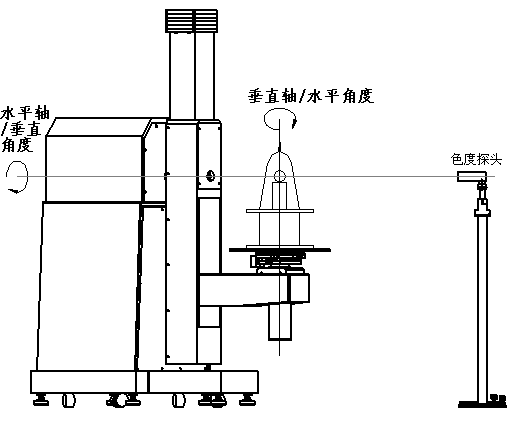

在測試過程中,探頭靜止不動,光源繞垂直軸(A 平面軸)和水平軸(α軸)轉動,從而得到光源的空間光強分布。
GPM-1800C分布式光度計測試系統滿足以下標準中關于光度學、色度學和電學參數的測試要求
1) NAVGUIDE “Aids to Navigation Manual 2010 Edition”
2) GB 12708-91 《航標燈光信號顏色》
3) JT/T 761-2009 《航標燈通用技術條件》
4) JT/T 730-2008 《航標燈光強測量和燈光射程計算》
