○ 高光學分辯率
○ 波長準確度高
○ 低雜散光
○ 寬線性動態范圍

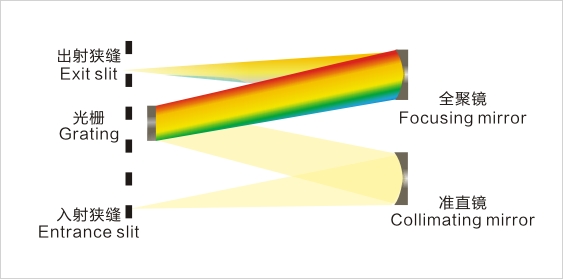

○ 采用了同步掃采技術的快速機械掃描方式

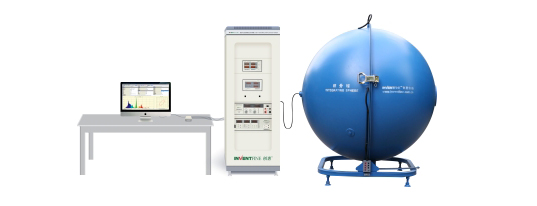

機械掃描光譜分析系統具有高光學分辯率、波長準確度高、低雜散光、寬線性動態范圍,適合對測量精度要求較高的領域。本系統采用了同步掃采技術的快速機械掃描方式,380nm~800nm間的光譜測量只需數十秒就可完成。
> 波長范圍 :380~800nm (特殊:UV-VIS-nIR)
> 波長精度:±0.2nm
> 光譜采樣間隔 : 5nm(特殊: 1nm)
> 色品坐標準確度 :±0.0003(相對于穩定度優于±0.0001的標準光源和中國計量院直接量傳值)
> 光通量測量范圍 : 10mlm~19999lm(配合適當積分球)
> 光度準確度:1級
> 相關色溫測量范圍: 1500k~25000k
> 中英文版操作軟件及完整的測試報告
機械掃描光譜分析系統具有高光學分辯率、波長準確度高、低雜散光、寬線性動態范圍,適合對測量精度要求較高的領域。
《光源顯色性評價方法》GB/T 5702-2019
《照明測量方法》GB/T 5700-2008
《普通照明用LED模塊測試方法》GB/T 24824-2009
《照明光源顏色的測量方法》GB/T 7922-2008
《嵌入式LED燈具性能要求》GB/T 30413-2013
《投光照明燈具光度測試》GB/T 7002-2008
《LED筒燈測試方法》GB/T 29293-2012
《放電燈(熒光燈除外)特性測量方法》GB/T 13434-2008
...
